Traditional Patrol Methods
EPRI Line Patrol Research

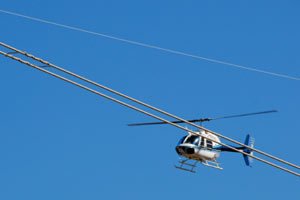

In order to quantify the effectiveness of current practices, a transmission line inspection experiment was devised in which multiple teams of utility and contract inspectors independently inspected the same segments of selected lines and reported observed defects. The line segments included a steel latticed tower line (100 towers) and a wood pole H-frame line (100 structures). Each of the teams independently inspected the same segments of lines using their standard practices and reporting procedures. The modes of inspection included aerial, detailed aerial, walking/driving, and climbing. The detailed aerial technique consisted of performing the line inspection from a helicopter while hovering at structures and flying spans at low ground speeds (5mph). Subsequent to the inspections, the inspection reports provided by each inspection team were compared and evaluated along with observations about each team’s methods to assess the relative effectiveness of the various practices for identifying line defects/deterioration. (Overhead Transmission Inspection and Assessment Guidelines – 2009. EPRI, Palo Alto, CA: 2009. 1017693)
Steel Tower Line-% Of Defects Reported
Aerial Patrol | 0.4% |
Ground Patrol | 17.1% |
Climbing Patrol | 29.3% |
Detailed Aerial | 47.6% |
Wood Pole H-Frame-% Of Defects Reported
Aerial Patrol | 1.7% |
Ground Patrol | 12.8% |
Climbing Patrol | 15.6% |
Detailed Aerial | 36.3% |
The results of the experiment indicated that the effectiveness of inspections is a function of several factors, including:
- Experience and training of inspectors
- Data recording/reporting system utilized
- Utility philosophy on maintenance
- Time allocation to perform inspection
- Availability and use of inspection tools
- Utility responsiveness to inspection findings
